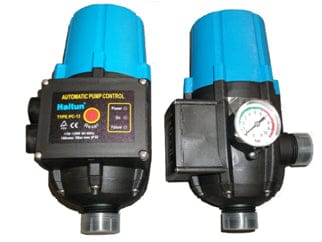

Smart Head for Water Pump 1/2 HP- PSH110
Review: 5 - "A masterpiece of literature" by , written on May 4, 20020
Great
-42%
Smart Head for Water Pump 1/2 HP- PSH110

Smart Head for Water Pump 1/2 HP- PSH110


Available:In Stock
Save $ 359.05 TTD 42% off

Shop and Earn Reward Points.

$ 492.95 TTD $ 852.00 TTD
  • Order within

How does a smart head work?

What is an electronic flow control?(smart head).It is an electronic device that controls the start and stop of an electric pump. The smart head senses when there is a drop in pressure or when water stops flowing when you open and close a tap

1 Rated voltage: 110V
2 Maximum current: 10 (6) A
3 Frequency :50-60HZ
4 Maximum Power: 1.1KW
5 Takeoff pressure setting:1.2bar, 1.5Bar,2.2Bar(please choose one)
6 maximum working pressure: 10Bar
7 interface thread: 1 "
8. Protection: IP65
9. Maximum operating temperature: 60C

10. Applications: self-priming pump, jet pump, garden pump, clear water pumps, etc.
11 Features: The automatic water pump controller is fully electronic intelligent pump control device. Detected water status, piped water consumption and changes in pipeline pressure data to start and stop the pump can completely replace the tank by the pressure pressure switch, water protection device, constituted by the conventional system by the check valve Stone and other live parts and the pipe is completely isolated, and a high seal-ability of the control box so that the controller has traditionally incomparable security, integration is designed so that you can save even more time with the material during installation.



DESCRIPTIONS
1.Electric switch used in water systems.
2.It starts the electric pump automatically after a pressure decrease(taps opening)and stops it when the fluid flow interrupts at the maximum pressure level of the electric pump(taps closed).
3.Joint screw:G1"male.
4.Completely replaced traditional pump control system composed of pressure switch, pressure tank and check valve, etc.
5.Stop the water pump in the case of water shortage.
6.With plug and socket, pump connection be more easily.
7.Customized setting.
