Eaton Universal Angle Plug S80-SP (30A, 50A) (125/250V) (3-Pole, 3-Wire). Ideal for range and dryer replacement applications - S80


Sale price $ 49.95 TTD Regular price $ 99.90 TTD
Save $ 49.95 TTD 50% off

Free Shipping to Ebuystt Lime Members for all products

MEGA

S80

5 In Stock

Eaton Universal Angle Plug S80-SP (30A, 50A) (125/250V) (3-Pole, 3-Wire). Ideal for range and dryer replacement applications - S80 Product Description: This 3-Pole 3-Wire plug comes in a black colour and is made of abuse resistant thermoplastic. It has a voltage rating of 125/250 VAC and current rating of 30/50 Amps....

Eaton Universal Angle Plug S80-SP (30A, 50A) (125/250V) (3-Pole, 3-Wire). Ideal for range and dryer replacement applications - S80

Product Description:

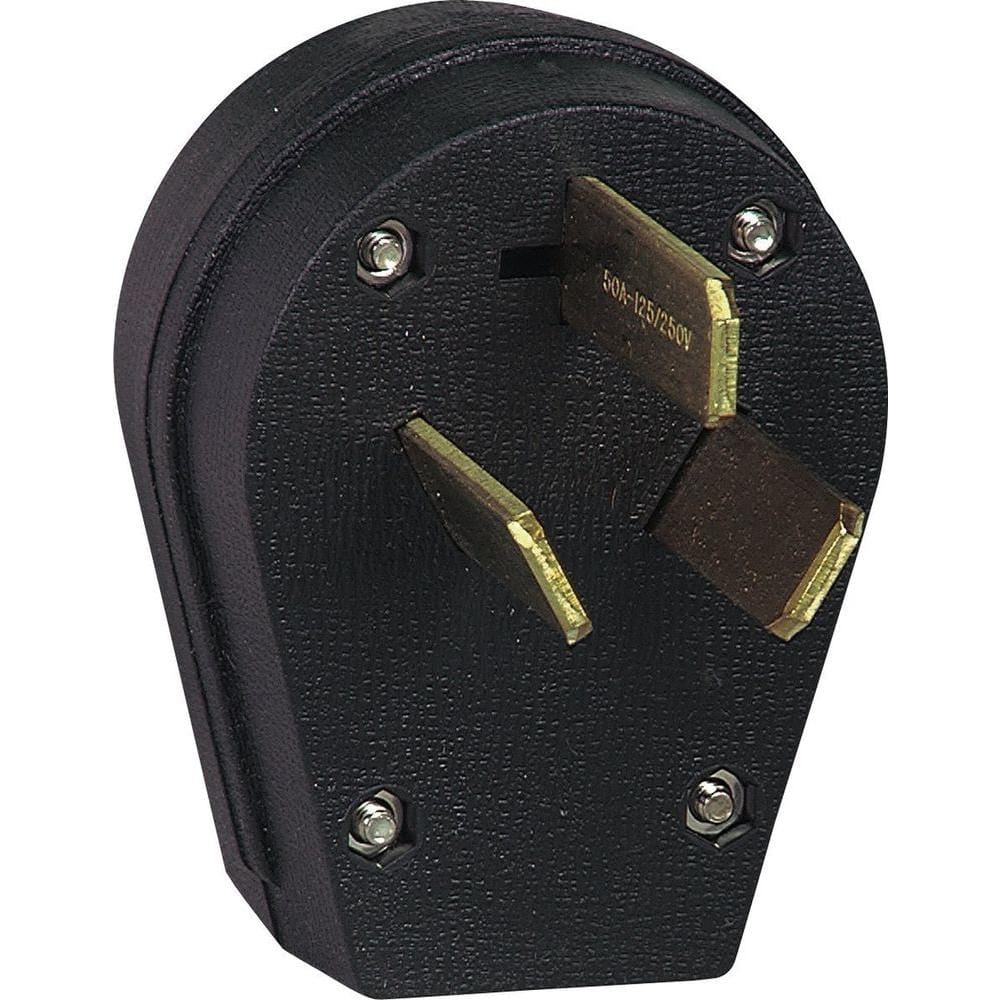

This 3-Pole 3-Wire plug comes in a black colour and is made of abuse resistant thermoplastic. It has a voltage rating of 125/250 VAC and current rating of 30/50 Amps. Non-grounding plug measures 2.800 Inch x 1.370 Inch x 2.920 Inch and accommodates a wire of size 10 - 8 AWG. The straight blade plug has a diameter of 0.08 Inch. It has a temperature rating of -20 to 60 deg C. Heavy-duty grade plug terminals have built-in pressure plates that help in protecting wires. It is ideal for range and dryer replacement applications. Plug is NEMA/UL/CSA certified.

Features:

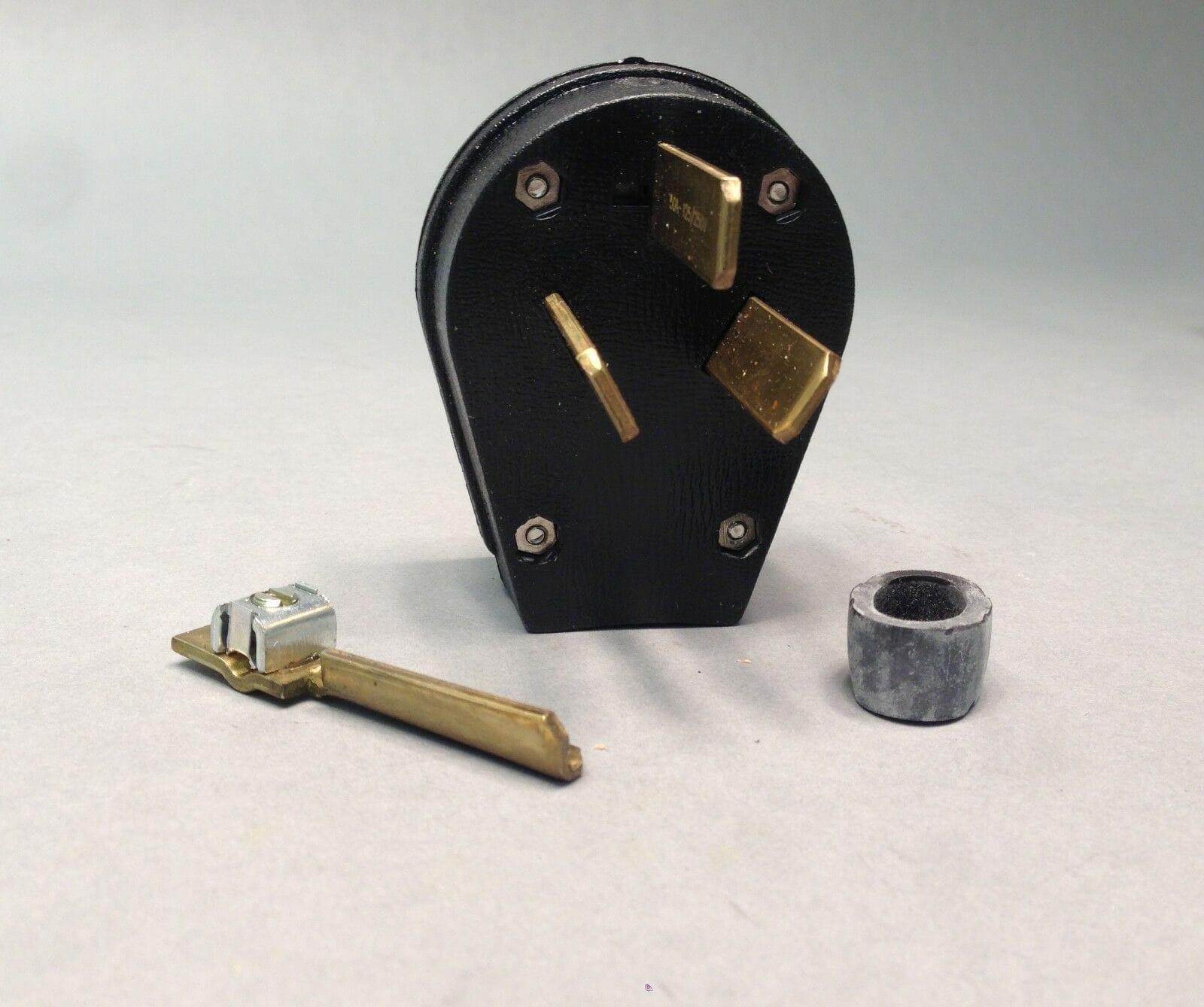

  • Dual current model furnished with blades
  • Terminals have pressure plates to protect wires
  • Made from abuse-resistant thermoplastic
  • For replacement use in older homes with 3-wire range and dryer connection points
  • Universal plugs include blades for both 30A and 50A configurations of the same voltage
  • 30A - 125/250V with "L" Blade
  • 50A - 125/250V with Flat Blade
  • NEMA 10-30P
  • NEMA 10-50P



Item Number: S80
