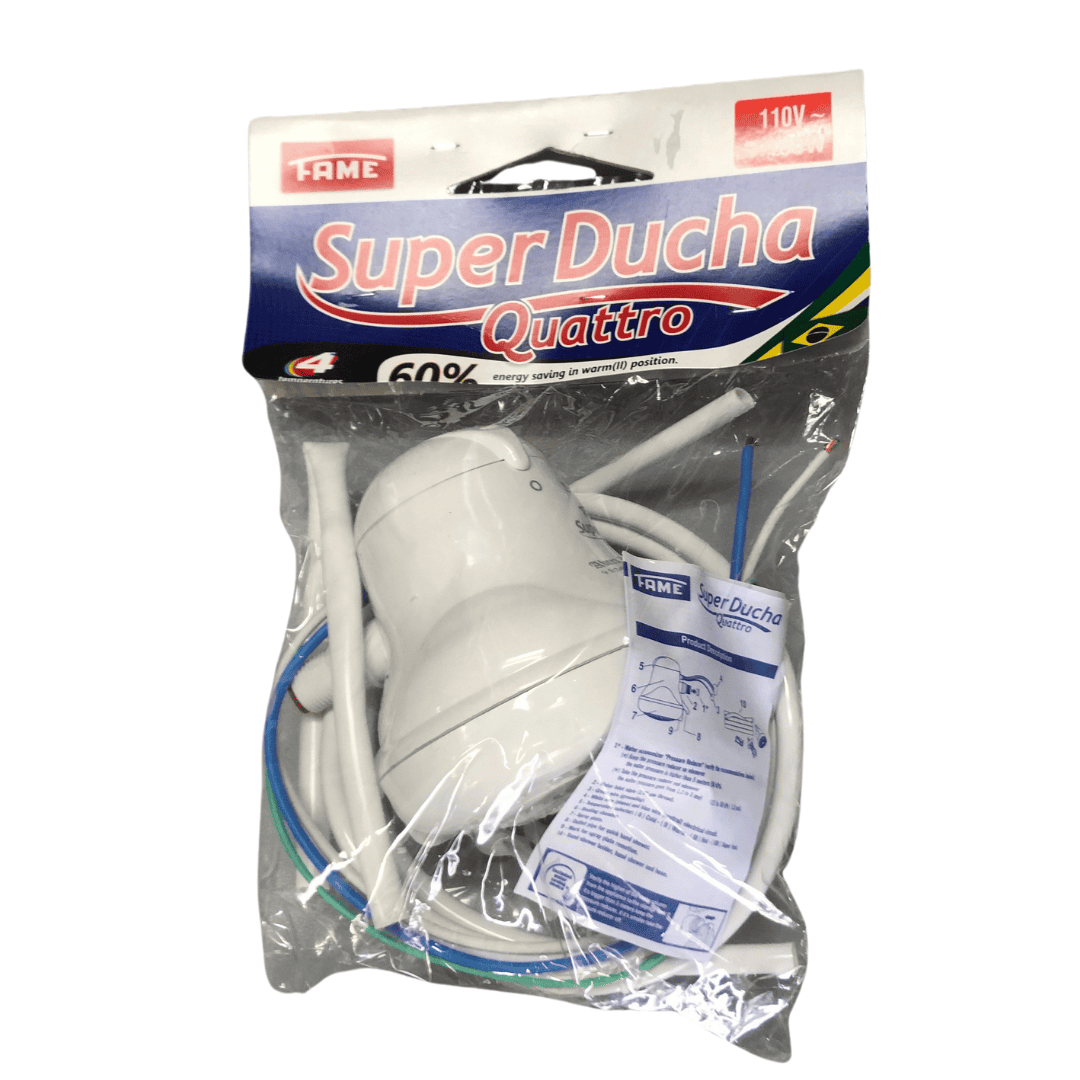

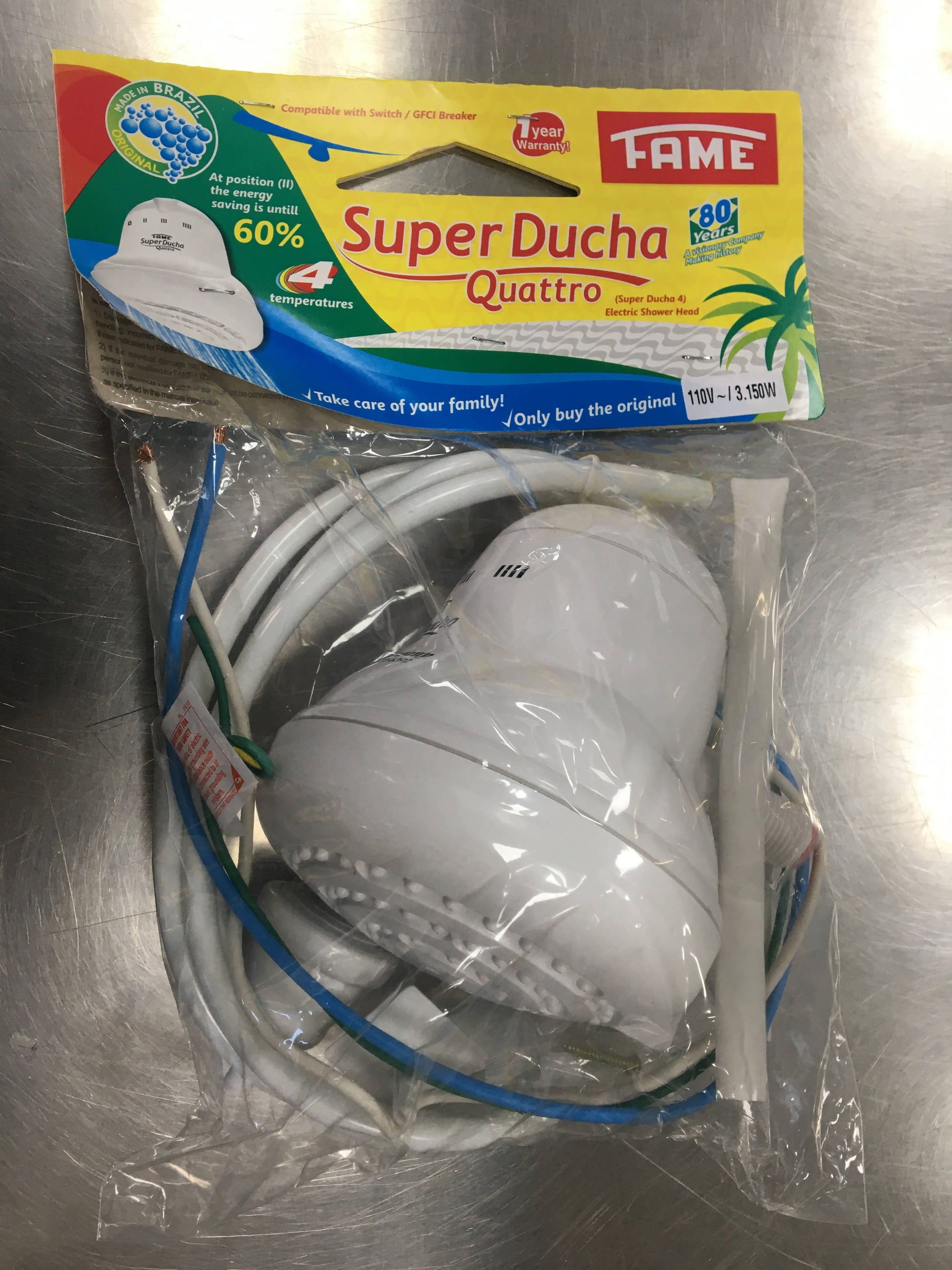

Fame Super Ducha Quattro 4T Instant Shower Head Water Heater is an economical option for those who do not fancy bathing in cold water but don’t want to break the bank. So why not go for something economical & affordable that can heat water instantly - PAC 069062

Description:

The Quattro Super Ducha is beyond quality and durability. It  brings four temperatures for an even more relaxing bath. It is the quality of the FAME brand offering you the best bath with the exact temperature the way you like it.

Features:

• Four temperatures (cold, warm, hot and super hot).
• The shower is easy to operate. Saves up to 60% energy at warm temperature.
• Wide water spreader for a comfortable shower.
• Easily replaceable heating element.
• Removal and relocation is very easy, making sieve cleaning even easier. Higher speed and ease in the exchange of the Resistance, with exclusive locking system, which ensures perfect electrical contact.
• State-of-the-art diaphragm: higher drive accuracy with even greater durability. Set of super-electric contacts ensure greater safety.
• Solar heating compatible.
• Water pressure: Minimum 1.3 m.c.a (0.1 bar) and maximum of 40 m.c.a. (4 bar).
• RCCB – Compatible with residual current circuit breaker.
• Compatible with solar heating system.
• Quality FAME brand from Brazil.
• Accompanying: Installation manual in the packaging, water outlet pipe cap (for hand shower); manual shower and flow reducer.

Technical Specifications:

• Voltage:110V
• Resistance Code: 1790
• Nominal Power (Watts) position 4 – Super Hot: 6,800W
• Intermediate Power (Watts) position 3 – Hot: 4200W
• Economic Power (Watts) position 2 – Warm: 2,600W
• Minimum Conductor Section (mm²): 4.0
• Circuit Breaker (Ampèr): 32A
• Minimum Conductor Section (mm²): 4.0
• Maximum distance (m): 32m (*)(*) For longer distances, consult us at Torra Electricals for a qualified professional recommendation. When voltage variation occurs, there will also be a variation in the water temperature.
• The electrical circuit should also have a grounding conductor with a maximum impedance of 2 (ohms) to which the green-yellow conductor of the Fame Super Ducha Quattro 4T will be connected, to guarantee the protection of the user.

Item Number: PAC069062
